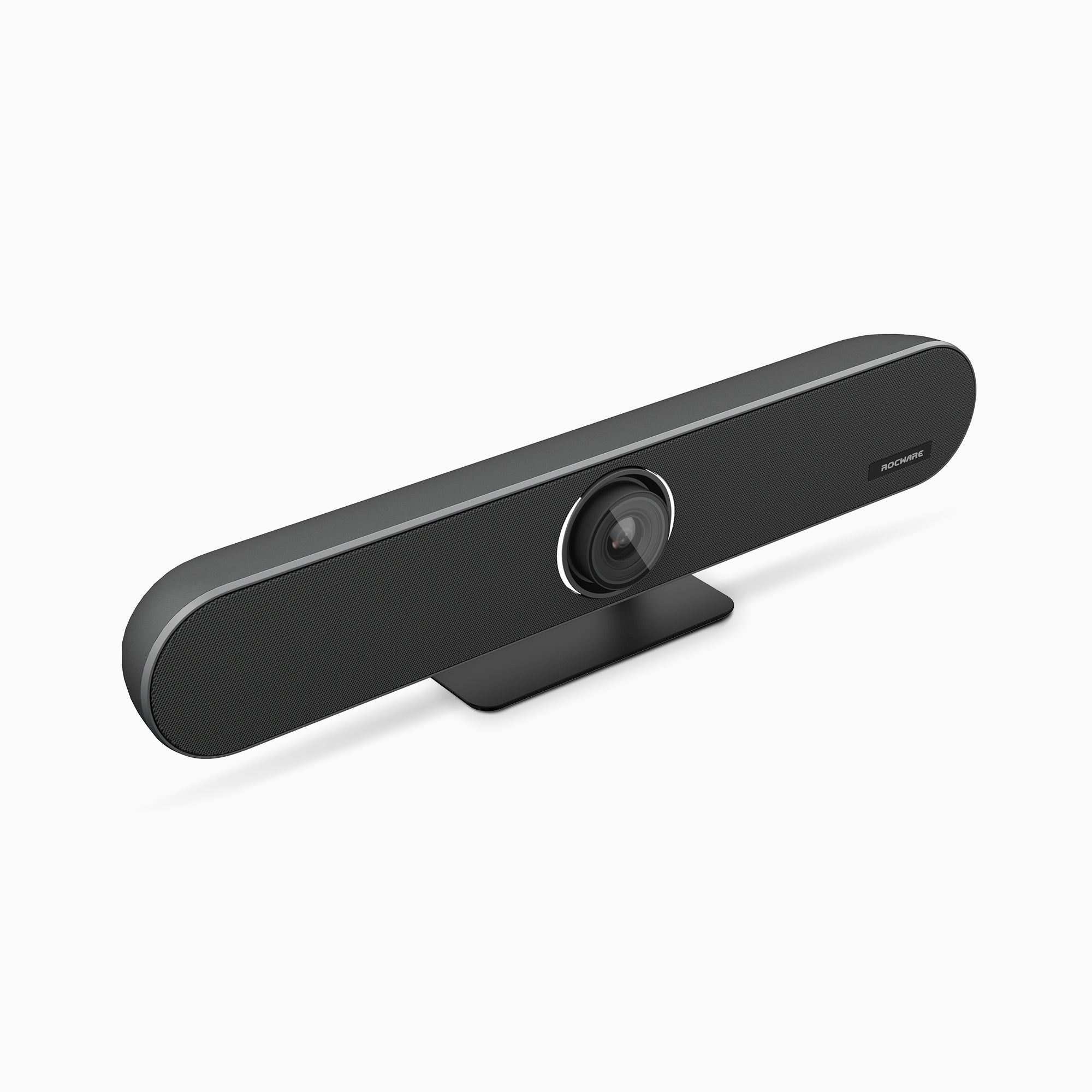

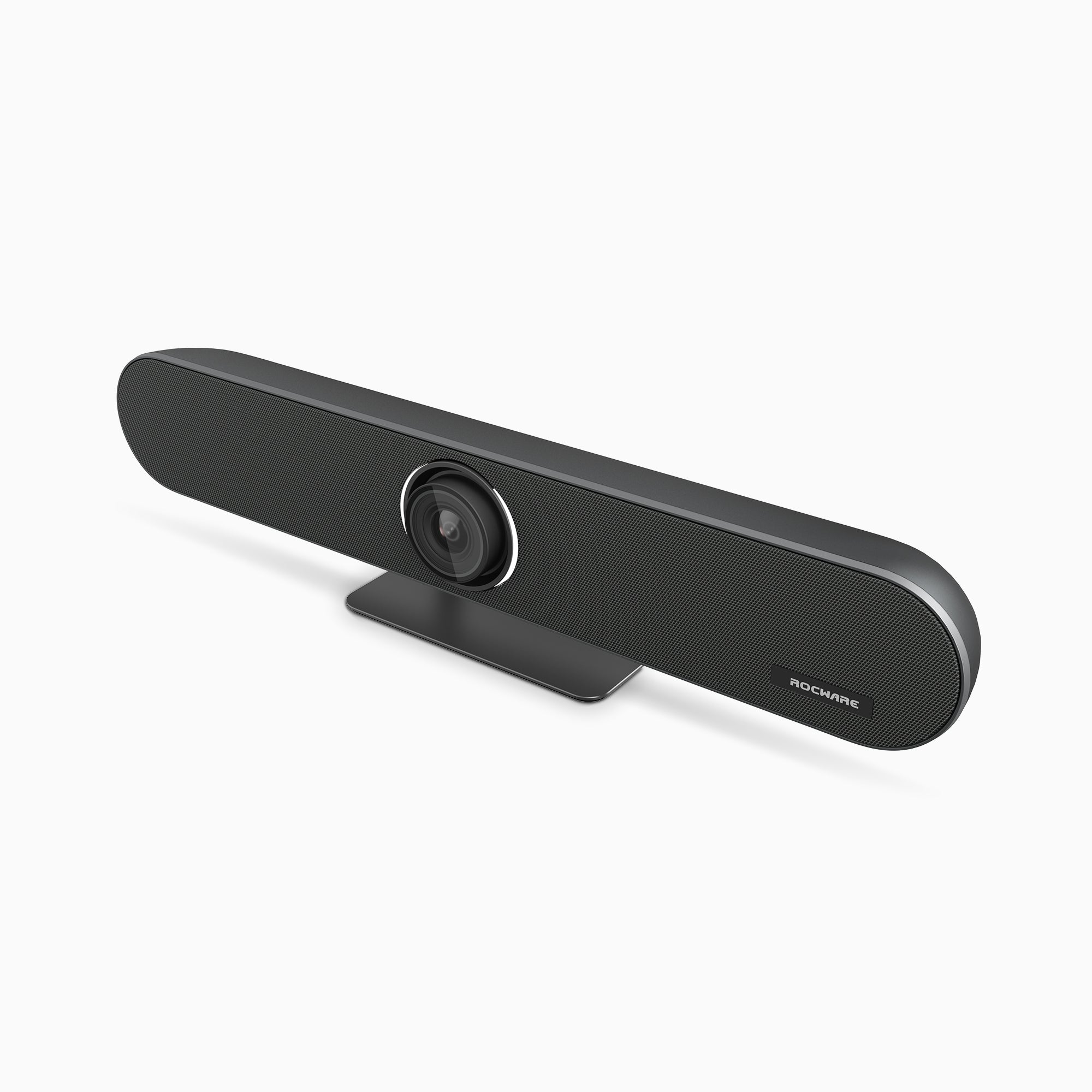

RB10 USB Smart Conferencing VideoBar
* The price excludes taxes, shipping, installation, setup, service fees, and any other additional charges.

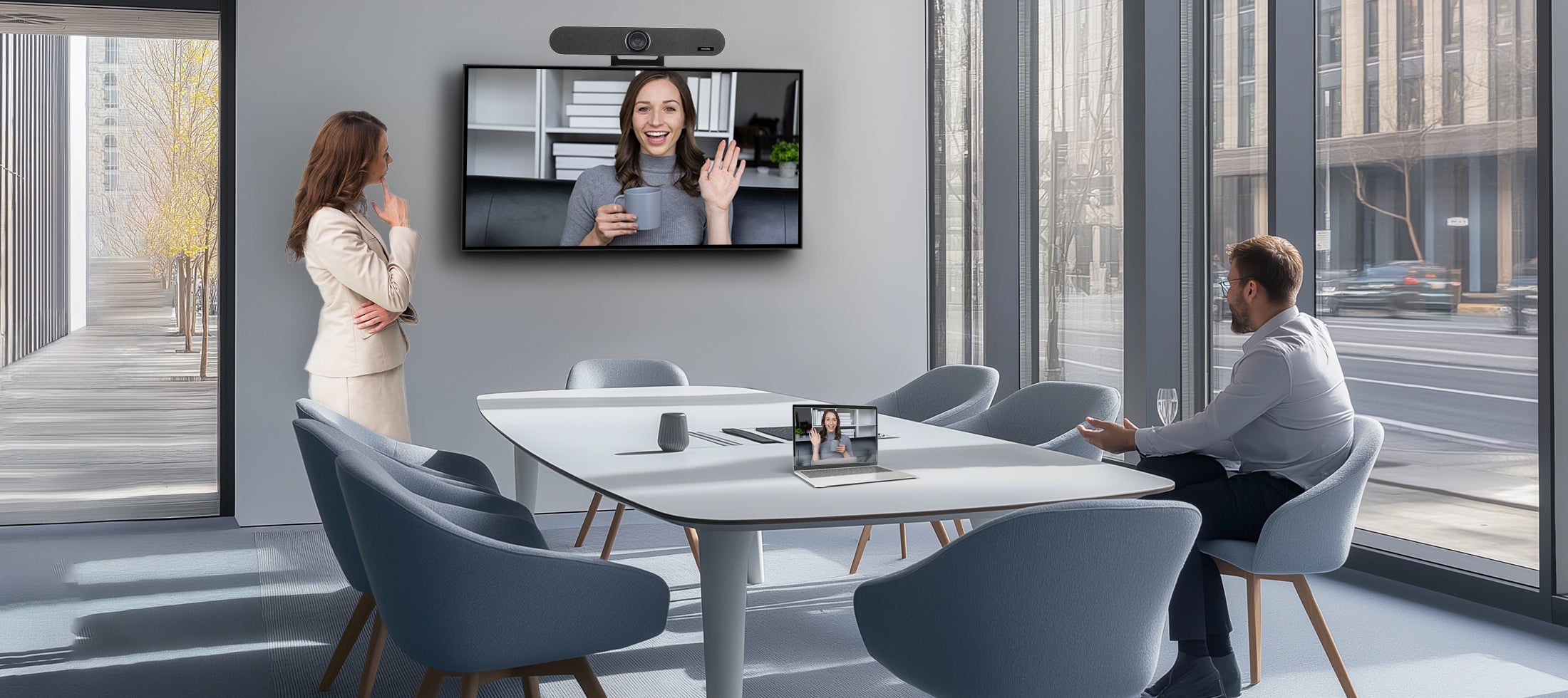

The RB10 is a USB video bar built for small to medium enterprise meeting rooms. It features a 4K UHD camera, digital microphone, and full-range speaker. With 20-megapixel resolution, it delivers sharp panoramic views and close-ups of participants. AI-powered video processing also helps make remote communication and collaboration easy and efficient.
Pairs well with

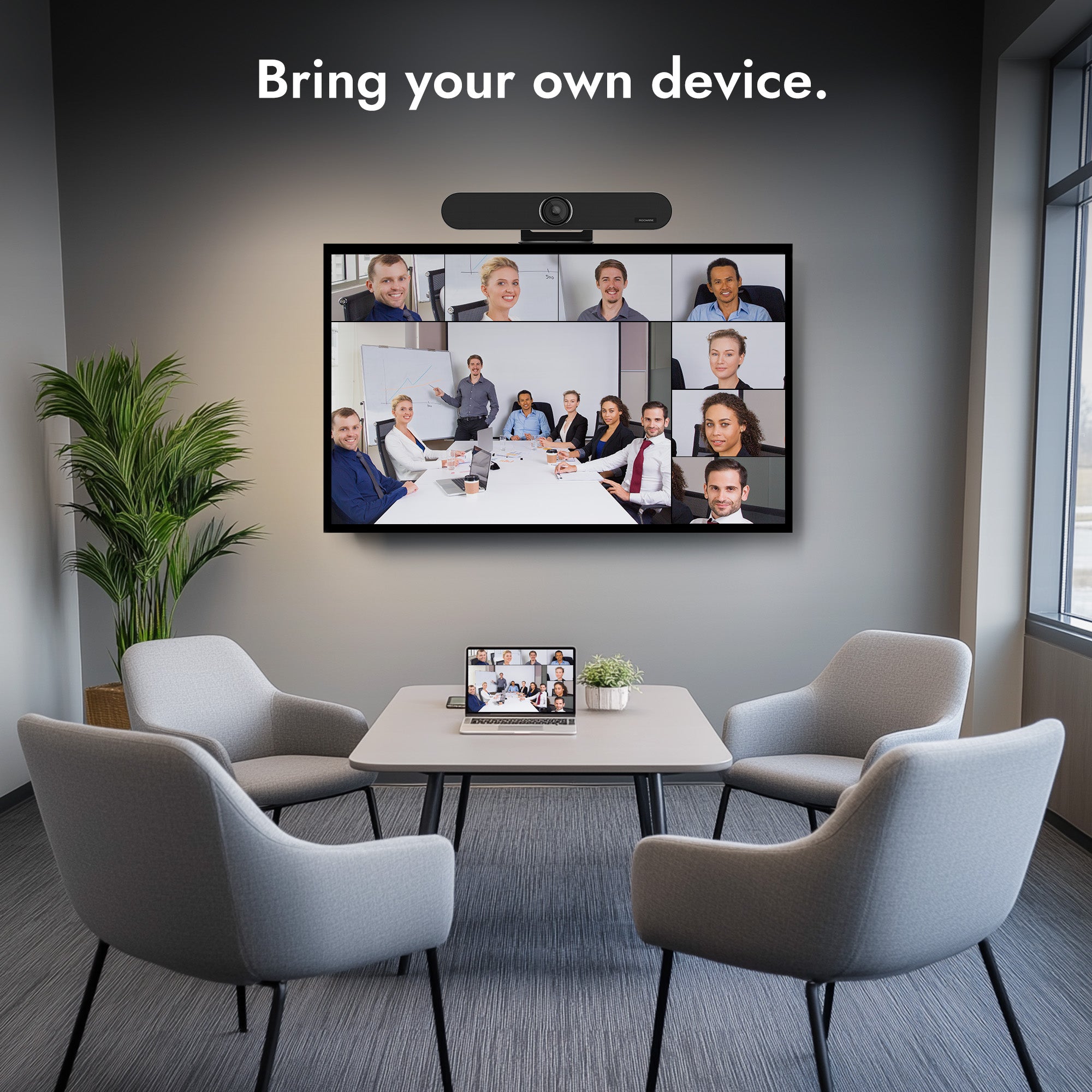

Simple Connectivity with BYOD & BYOM
The built-in WiFi module lets participants easily join meetings with their own devices. It also supports wireless screen mirroring, allowing seamless sharing from computers to the device for a smoother collaboration experience.
4K Clarity, Always Compatible
Equipped with a 4K UHD CMOS sensor of 1/1.8 inches and 20 million effective pixels, it outputs 4K (3840x2160) UHD resolution images and is backward compatible with resolutions such as 1080P and 720P.

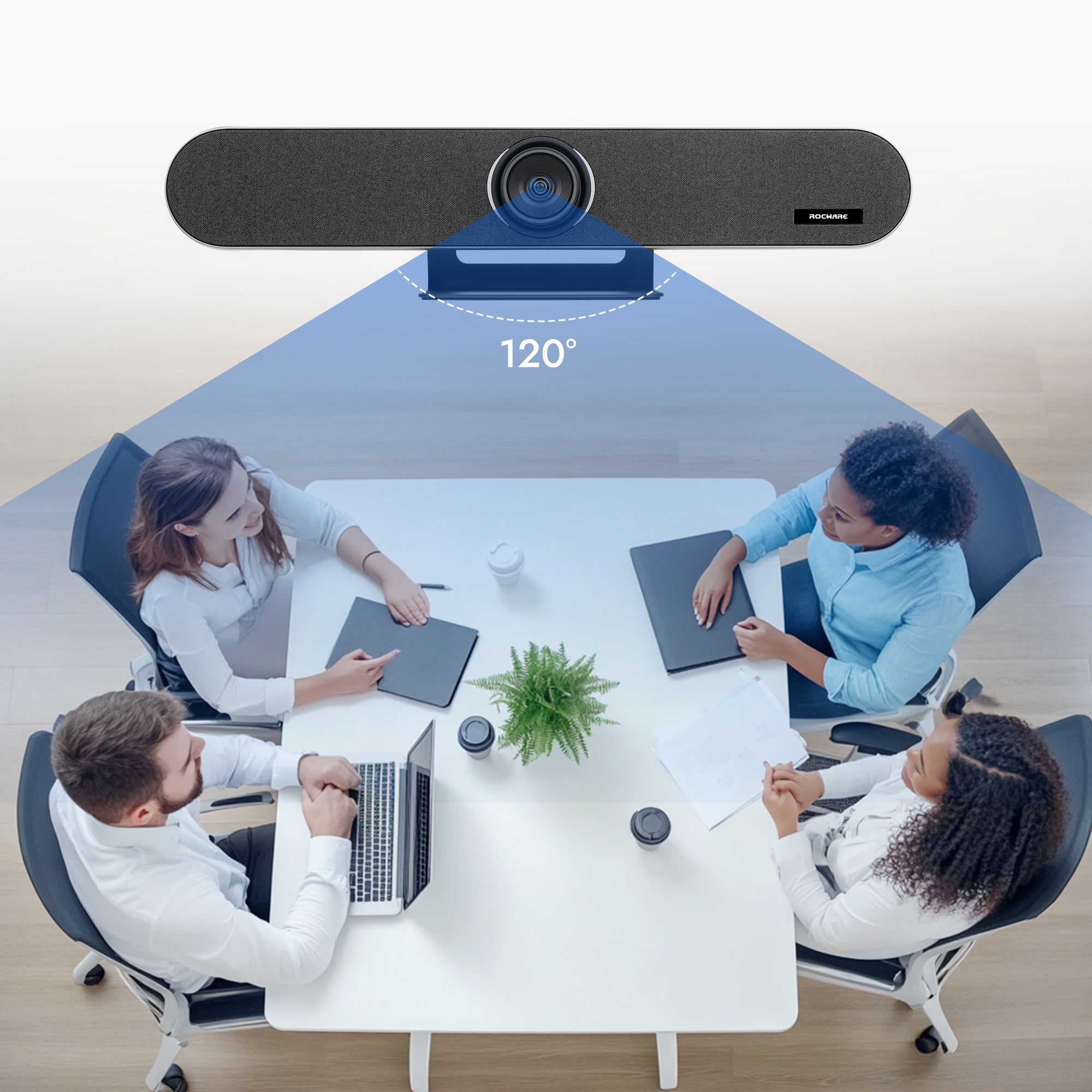

Wide-Angle Clarity with 120° FoV
The lens provides a 120° wide field of view (FoV), ensuring that the entire meeting room is captured with clarity. This wide angle allows for a comprehensive view of all participants, making it ideal for group settings and larger spaces.
Sharp Focus with 5x Zoom & ±15° PTZ
Combined with 5x digital zoom, it ensures every detail is visible, no matter the distance. With a ±15° PTZ function, the camera can easily adjust to focus on all participants, ensuring everyone is included, even if they move around the room.
Smart Speaker Tracking
Stay Focused, Stay Engaged
The speaker tracking uses head, facial, figure, and sound recognition to follow the active speaker. It adjusts automatically to keep the speaker in focus, ensuring clear and dynamic visuals. This improves meeting engagement and interaction.
Auto Framing for Effortless Focus
The auto framing feature detects the number of participants and their movements. It automatically adjusts the camera to capture the best possible view, improving meeting efficiency by keeping everyone in frame.

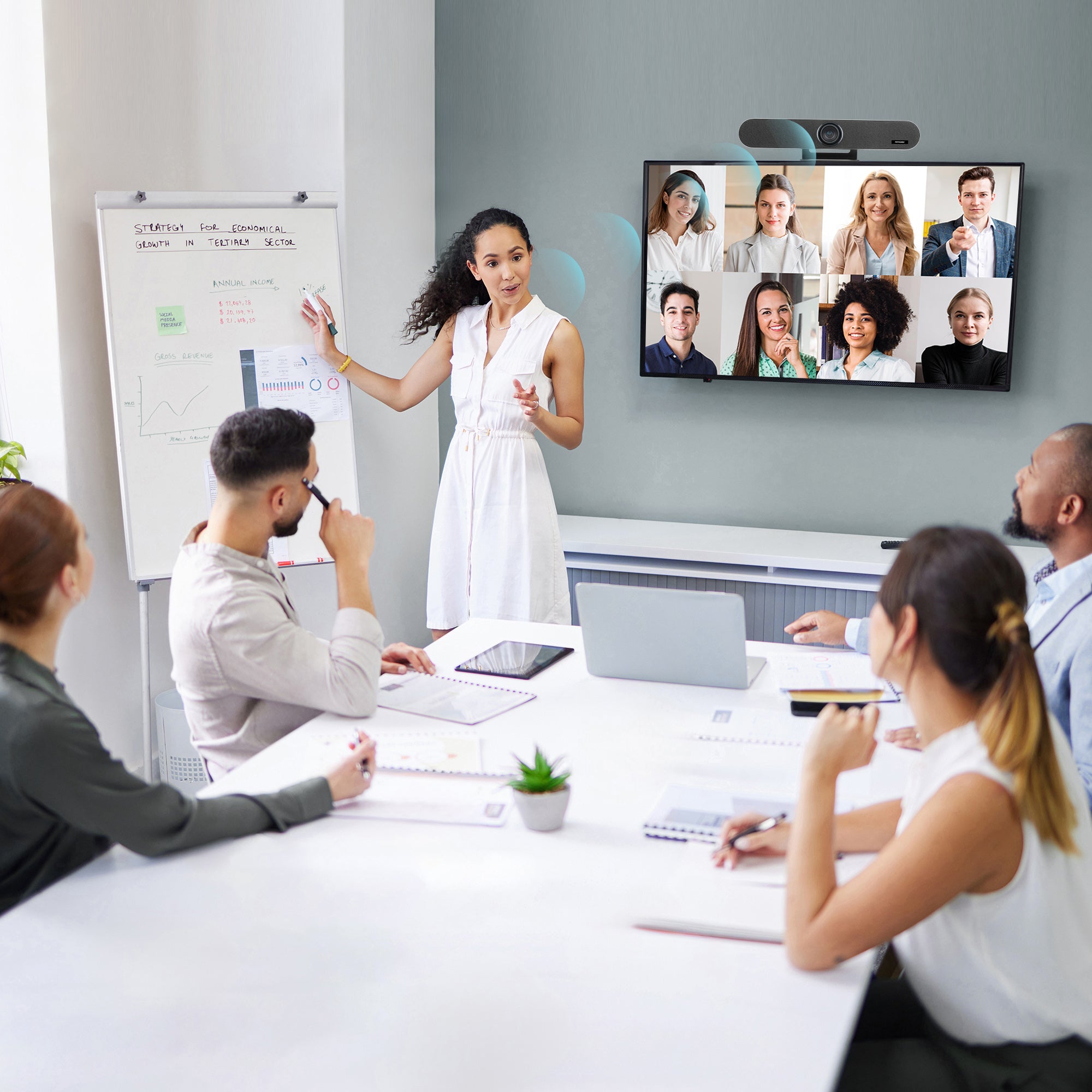

Dynamic View for Seamless Collaboration
Smart Gallery uses AI to adjust the screen layout based on participants. It captures close-ups and arranges them evenly, ensuring everyone is visible. When someone speaks, their image flashes with color, enhancing communication.

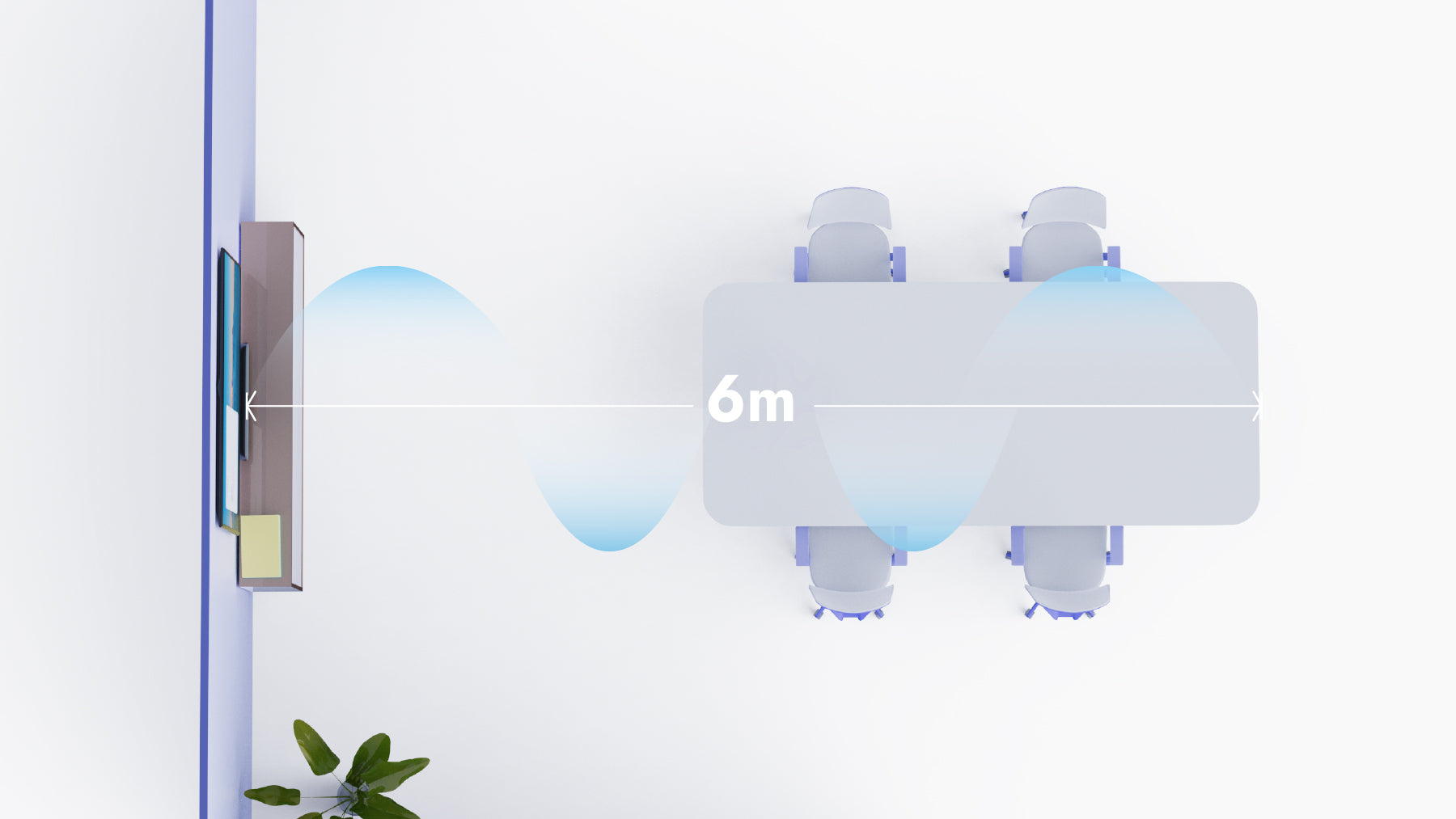

6m Audio Pickup & Clear Sound
The built-in beamforming microphone detects the speaker’s sound source and adjusts for accurate audio capture within a 6-meter range. Integrated full-range, high-fidelity speakers deliver clear and consistent remote audio.
See RB10 in Action – 4K All-in-One Videobar
Discover how the RB10 transforms small meeting rooms with crystal-clear 4K video, AI tracking, and seamless audio.
📹 Watch the video to see it in action!
Product Details
Camera
Video Resolution 4KP30, 1080P30, 1080P60, 720P60
Sensor 1/1.8 inches, CMOS, Effective Pixels: 20 Megapixels
Horizontal FOV 110°
Diagonal FOV 120°
Digital zoom 5x
Pan Angle ±15°
Tilt Angle ±15°
PTZ Mechanical PTZ (MPTZ) + e-PTZ (EPTZ)
Digital Noise Reduction 2D & 3D Digital Noise Reduction
SNR ≥ 55dB
Backlight Compensation Support
Audio
Full-frequency Speaker 96 dB SPL at 0.5 m
Microphone Array Beamforming microphone with 6m pickup distance
Expansion MIC Supports up to 3 microphones via DMIC interface
Audio 3A Algorithm AI-Powered AEC/ANC/AGC
Sampling Rate Mic 48K, Speaker 48K
USB Features
Type of Connection USB 3.0, downward compatible with USB 2.0
Color System / Compression H.264 / YUY2 / MJPEG
USB Audio 48KHz sampling rate, UAC 1.0 support
USB Video Communication Protocol UVC 1.1
UVC PTZ Control Support(ePTZ)
I/O Interface
USB 3.0
1 × USB 3.0, type-C, Support audio/video transmission and firmware upgrade
1 × USB 3.0, type-A, Reserved
HDMI 1 × HDMI OUT, 1 × HDMI IN
Network Interface 1 x RJ45, 10/100/1000M adaptive Ethernet port
EXT Interface
1 x RJ45, connects to expansion microphone or wired BYOD pod, and supports PSE power supply (IEEE802.3at)
Power 1 × Power connector
WiFi
Wifi 5, 2.4G/5G Dual-band, IEEE802.11 a/b/g/n/ac, Supports wireless BYOM and wireless screen sharing(requires additional device)
Remote Controller Support
Other specifications

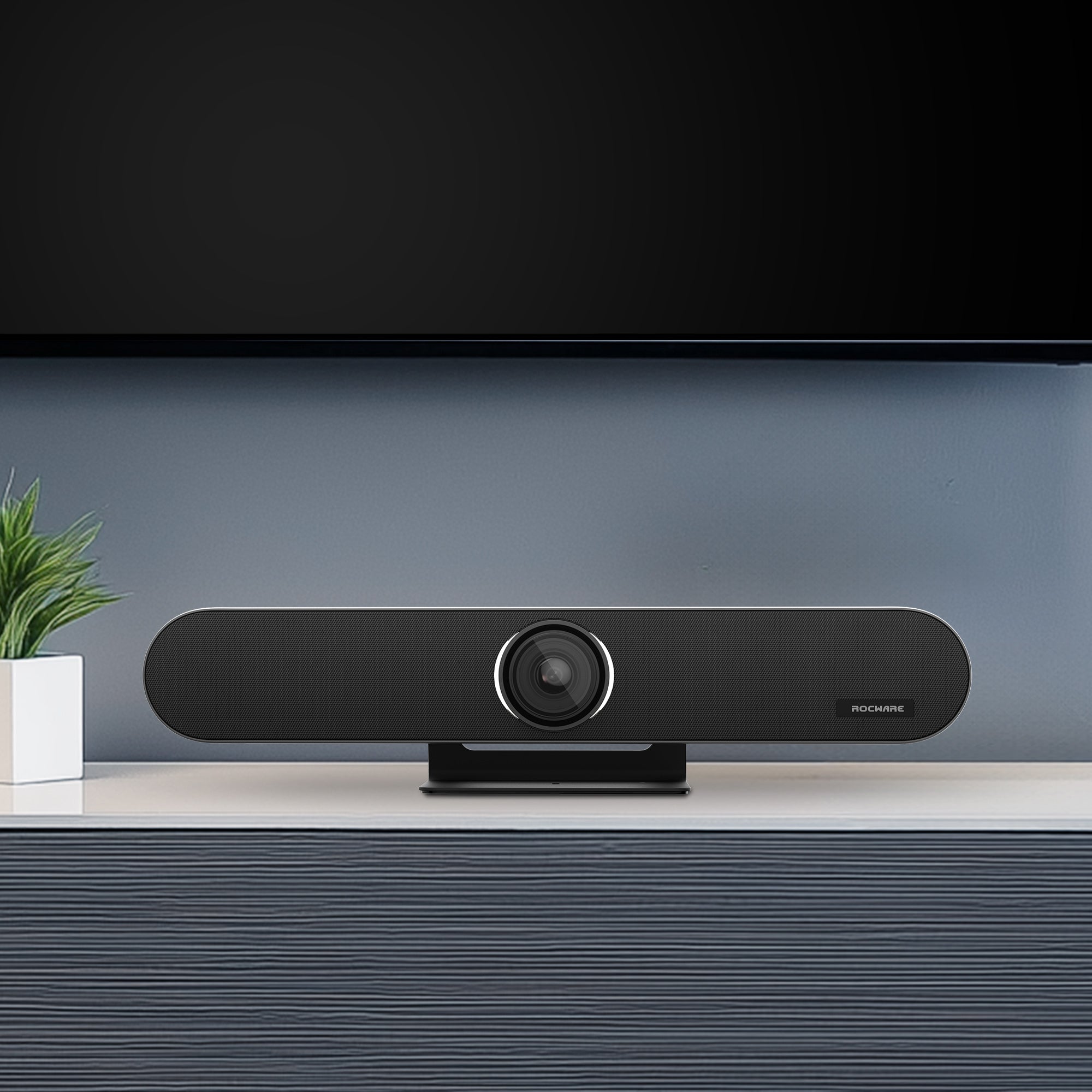

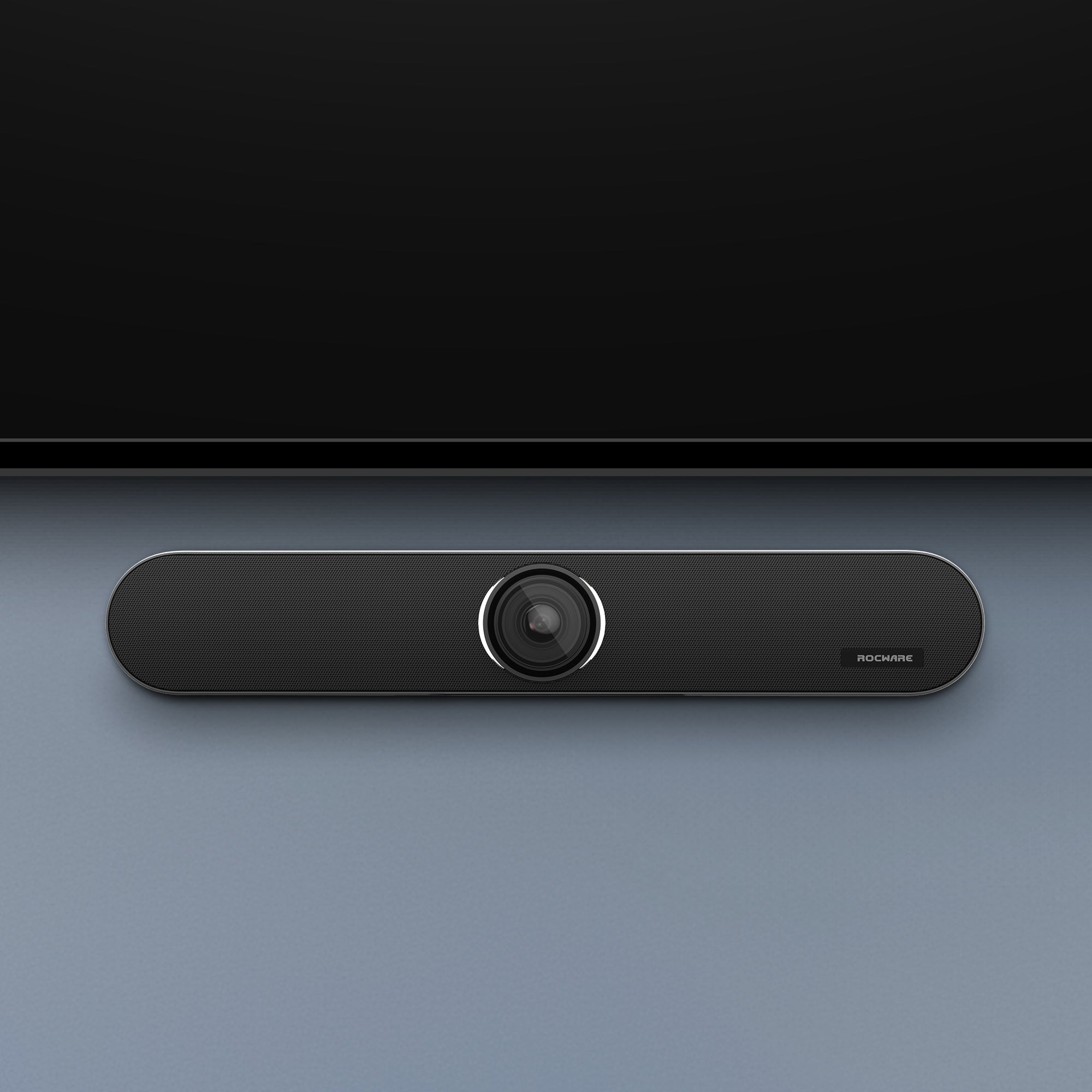

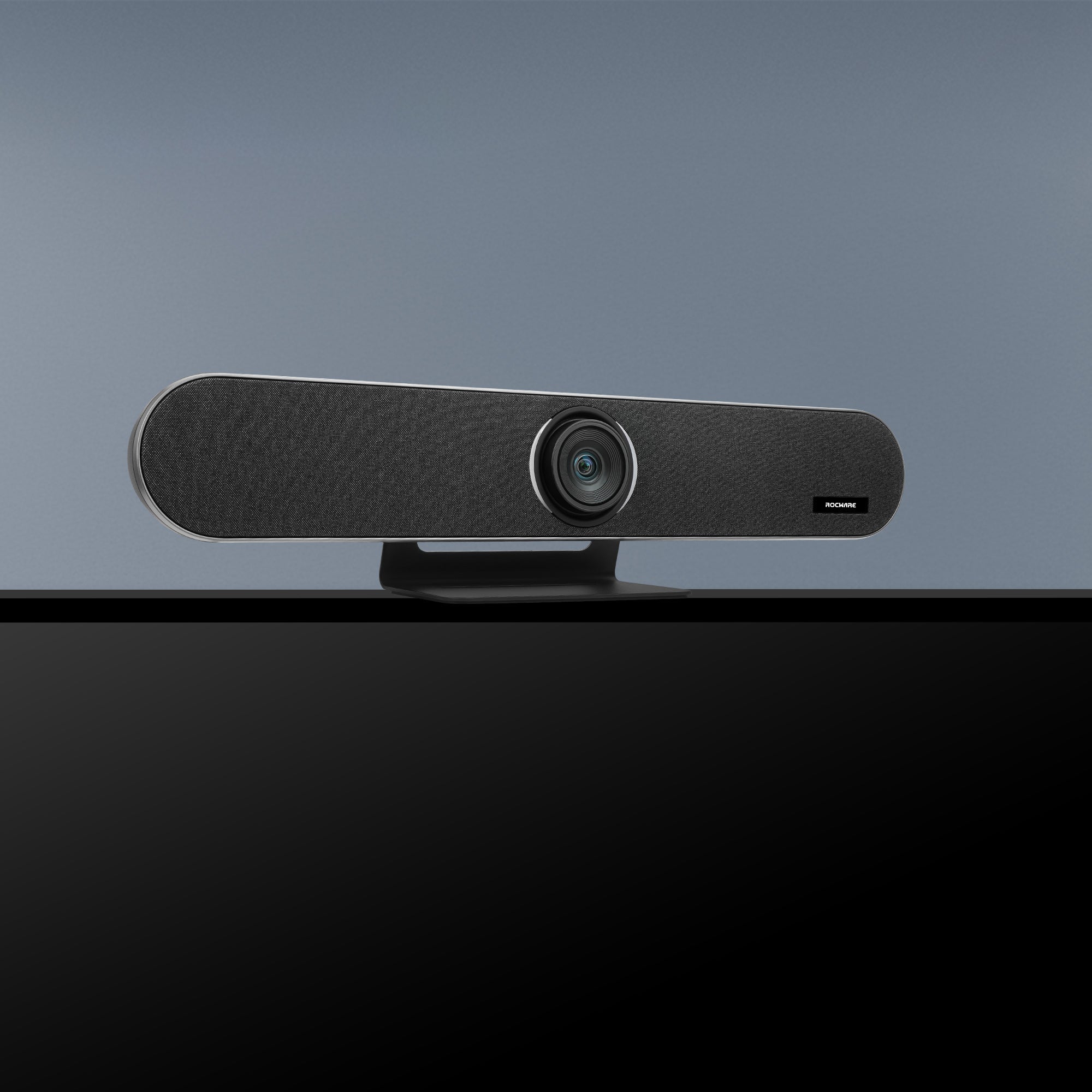

Installation Method Support desktop placement, wall mounting and TV-mounting etc.
Supplied Cables USB/HDMI Cable
Safety Protection Anti-theft lock
Generic Spec
Power Supply DC 12V, 5A (MAX)
Operating Temperature 0° C ~ 40° C
Storage Temperature -40° C ~ 60° C
Dimension (W × D × H) 600× 135 × 117mm
Net Weight 2.5 Kg
